[Constellation] How to place a link in an editable table
In Constellation, we can display properties of EmbeddedData or DataReference in a table format.

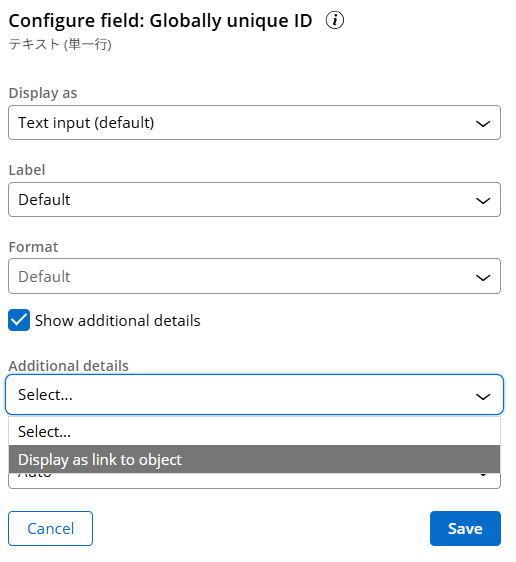

However, in an EmbeddedData table, we cannot create a link (Show additional details -> Additional details - Display as link to object).
We expect to be able to navigate to the detail screen of the relevant record. How can we achieve this?
Best regards,
Accepted Solution
Updated: 21 Jan 2026 23:40 EST
Accenture
JP
@RameshSangili Thank you for your reply. I was able to solve this issue. I have since confirmed in the Community Edition that it is possible to create a link from EmbeddedData to a data object by implementing the following solution.
Although I ended up resolving it myself, your answer was very helpful. Thank you very much.
Solution

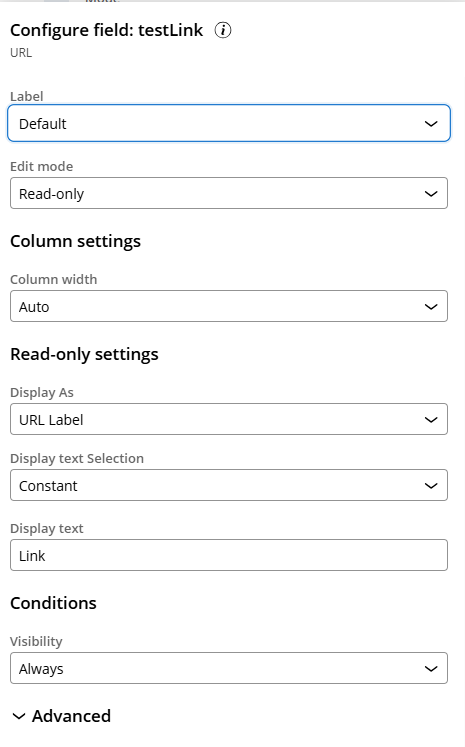

- Create a property of type URL.
- In a Pre-FlowAction (either a DataTransform or an Activity), set the URL to open the data object's screen. Example (Community Edition): https://nujjapdp.pegace.net/prweb/PRAuth/app/supply-chain-blueprinttest/data/supplier2?dataViewName=D_Supplier2&Name=testSupplier&portal=WebPortal
- Add the URL property to the EmbeddedData table.
- Set the URL's configuration to "ReadOnly" and set it to use a "URL Label".
Pegasystems Inc.
CA
In 25.1, this is feasible on Insights to show additional details using the format. Please find the attached screenshot for your reference.
Updated: 21 Jan 2026 20:16 EST
Accenture
JP
Thank you for sharing the information about the improvements in version 25.1. I will apply for the Community Edition and try to confirm it.
You mentioned "Insights," but is it also possible to do the same for a Table using EmbeddedData properties, displayed in a normal screen View?
Thank you.
Kento
Pegasystems Inc.
CA
Sorry, this feature is available only for Insights. It's a new feature in 25.1 release.
Please find the link for your reference:
https://community.pega.com/conversations/user-experience/pega-infinity-…
Accepted Solution
Updated: 21 Jan 2026 23:40 EST
Accenture
JP
@RameshSangili Thank you for your reply. I was able to solve this issue. I have since confirmed in the Community Edition that it is possible to create a link from EmbeddedData to a data object by implementing the following solution.
Although I ended up resolving it myself, your answer was very helpful. Thank you very much.
Solution
- Create a property of type URL.
- In a Pre-FlowAction (either a DataTransform or an Activity), set the URL to open the data object's screen. Example (Community Edition): https://nujjapdp.pegace.net/prweb/PRAuth/app/supply-chain-blueprinttest/data/supplier2?dataViewName=D_Supplier2&Name=testSupplier&portal=WebPortal
- Add the URL property to the EmbeddedData table.
- Set the URL's configuration to "ReadOnly" and set it to use a "URL Label".
Accenture
JP
@KentoO31For future reference, here's a tip for others:
Another user has summarized how to implement this in a modal window in the article below.
https://novitatestech.com/view-multi-level-data-in-pega-constellation/
